Model

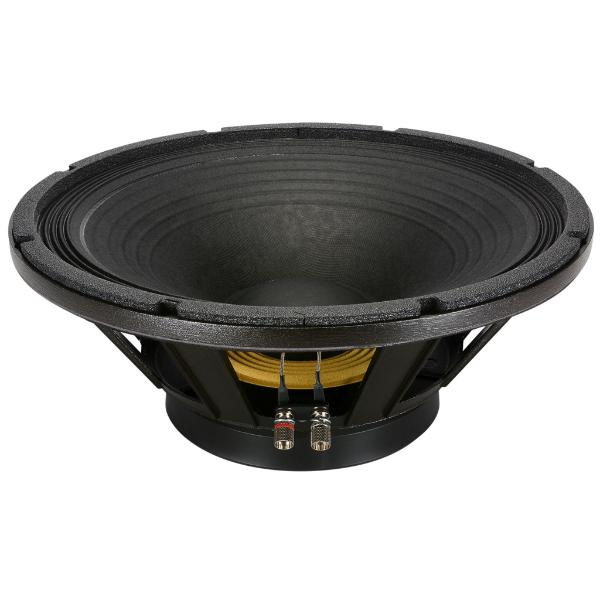

Eminence KAPPA PRO-15LF-2
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
198.8
QTS
0.3
PWR(W)
1200
SPL(dB)
96.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
198.8
Qts
0.3
Qms
7.3
Qes
0.32
Bl(Tm)
21.6
Mms(gr)
102
Cms(mm/N)
0.203
Rms(kg/s)
3.073
Le(mH)
1.4
Re(Ohm)
6.5
Sd(sq.mm)
85625
Vd(l)
0.574
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.57
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
97
Mounting Information
Speaker Displacement (l)
4.31
Total Diameter (mm)
386
Cutout Diameter (mm)
356
Mounting Depth (mm)
167
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
