Model

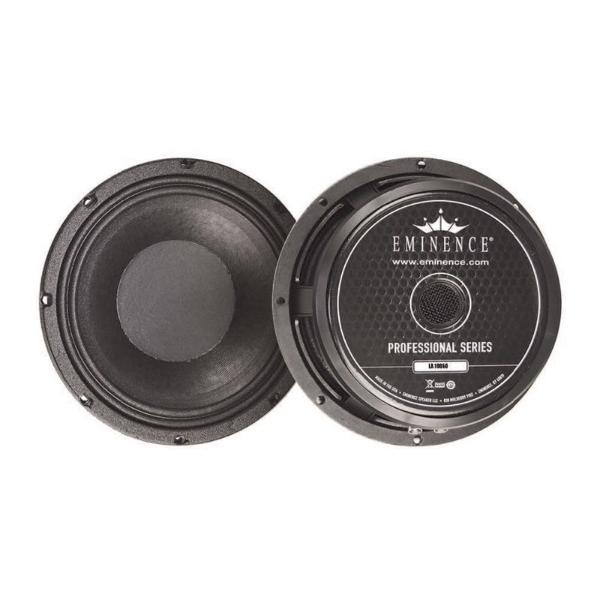

Eminence LA10850
Rating
DIAM
10"
FS(Hz)
55
VAS(l)
57.766
QTS
0.25
PWR(W)
700
SPL(dB)
97.6
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
57.8
Qts
0.25
Qms
9.09
Qes
0.257
Bl(Tm)
13.4
Mms(gr)
26
Cms(mm/N)
0.322
Rms(kg/s)
0.988
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
35566
Vd(l)
0.103
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.727
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
114
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
