Model

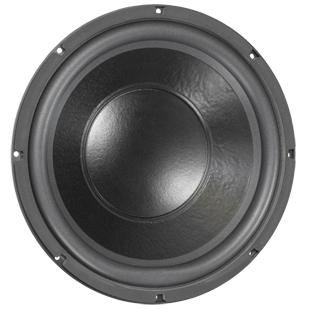

Eminence LAB 15/4
Rating
DIAM
15"
FS(Hz)
34.4
VAS(l)
93.3
QTS
0.51
PWR(W)
1200
SPL(dB)
89.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
93.3
Qts
0.51
Qms
3.76
Qes
0.59
Bl(Tm)
17.5
Mms(gr)
221
Cms(mm/N)
0.097
Rms(kg/s)
12.704
Le(mH)
1.6
Re(Ohm)
3.8
Sd(sq.mm)
82370
Vd(l)
1.071
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.62
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
93.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
