Model

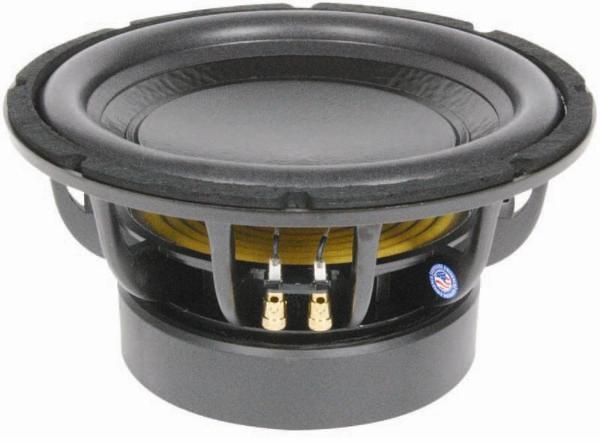

Eminence LAB12
Rating
DIAM
12"
FS(Hz)
22
VAS(l)
125.2
QTS
0.38
PWR(W)
800
SPL(dB)
87.2
IMP(Ohm)
6x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
22
Vas(l)
125.2
Qts
0.38
Qms
13.32
Qes
0.391
Bl(Tm)
15
Mms(gr)
146
Cms(mm/N)
0.35
Rms(kg/s)
1.515
Le(mH)
0
Re(Ohm)
4.3
Sd(sq.mm)
50222
Vd(l)
0.653
X-max(mm)
13
X-mech(mm)
22
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
6
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
3.09
Total Diameter (mm)
313
Cutout Diameter (mm)
280
Mounting Depth (mm)
164
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
