Model

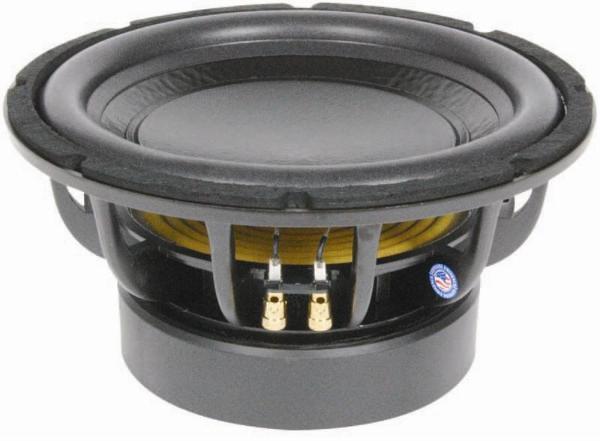

Eminence LAB12C
Rating
DIAM
12"
FS(Hz)
23
VAS(l)
128.3
QTS
0.33
PWR(W)
1000
SPL(dB)
88.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
128.3
Qts
0.33
Qms
11.7
Qes
0.34
Bl(Tm)
13.4
Mms(gr)
136
Cms(mm/N)
0.36
Rms(kg/s)
1.68
Le(mH)
1.09
Re(Ohm)
3.1
Sd(sq.mm)
50123
Vd(l)
0.652
X-max(mm)
13
X-mech(mm)
22
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
92.6
Mounting Information
Speaker Displacement (l)
3.087
Total Diameter (mm)
313
Cutout Diameter (mm)
280
Mounting Depth (mm)
164
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
