Model

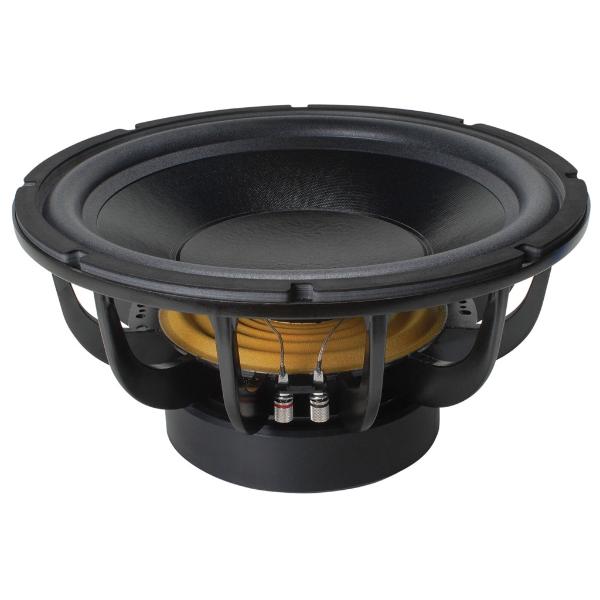

Eminence LAB15
Rating
DIAM
15"
FS(Hz)
28
VAS(l)
103.6
QTS
0.35
PWR(W)
1200
SPL(dB)
89.7
IMP(Ohm)
6x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
103.6
Qts
0.35
Qms
5.4
Qes
0.37
Bl(Tm)
26.8
Mms(gr)
308
Cms(mm/N)
0.11
Rms(kg/s)
10.11
Le(mH)
3.23
Re(Ohm)
4.9
Sd(sq.mm)
82370
Vd(l)
0.972
X-max(mm)
12
X-mech(mm)
22
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
6
Reference efficiency η0(%)
0.59
Sensitivity(dB) 1-W
89.7
Sensitivity(dB) 2.8-V
91.9
Mounting Information
Speaker Displacement (l)
4.46
Total Diameter (mm)
390
Cutout Diameter (mm)
356
Mounting Depth (mm)
197
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
