Model

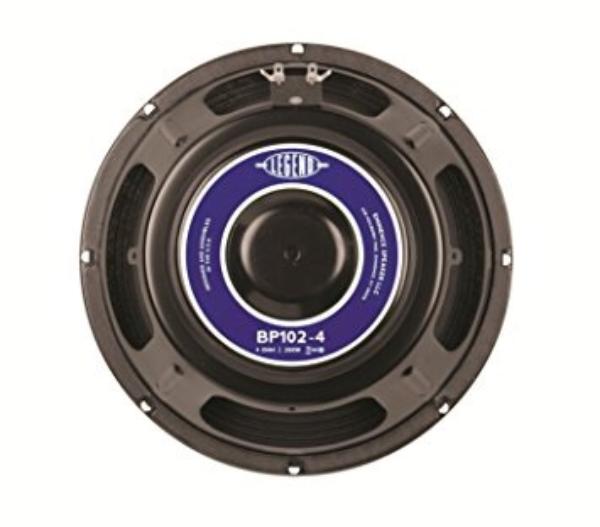

Eminence LEGEND BP102-4
Rating
DIAM
10"
FS(Hz)
35
VAS(l)
103.8
QTS
0.38
PWR(W)
400
SPL(dB)
92.3
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
103.8
Qts
0.38
Qms
10.61
Qes
0.4
Bl(Tm)
7.1
Mms(gr)
34
Cms(mm/N)
0.608
Rms(kg/s)
0.705
Le(mH)
0
Re(Ohm)
2.7
Sd(sq.mm)
34695
Vd(l)
0.215
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.17
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
108
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
