Model

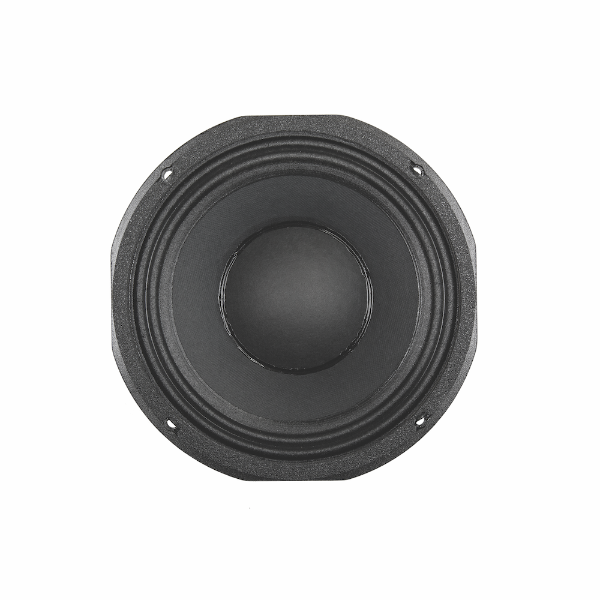

Eminence LEGEND CA1059-8
Rating
DIAM
10"
FS(Hz)
48
VAS(l)
72
QTS
0.26
PWR(W)
500
SPL(dB)
96.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
72
Qts
0.26
Qms
3.3
Qes
0.28
Bl(Tm)
12.5
Mms(gr)
27
Cms(mm/N)
0.407
Rms(kg/s)
2.49
Le(mH)
0.11
Re(Ohm)
5.4
Sd(sq.mm)
35318
Vd(l)
0.166
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.74
Sensitivity(dB) 1-W
96.4
Sensitivity(dB) 2.8-V
98.1
Mounting Information
Speaker Displacement (l)
1.72
Total Diameter (mm)
267
Cutout Diameter (mm)
229
Mounting Depth (mm)
115
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
