Model

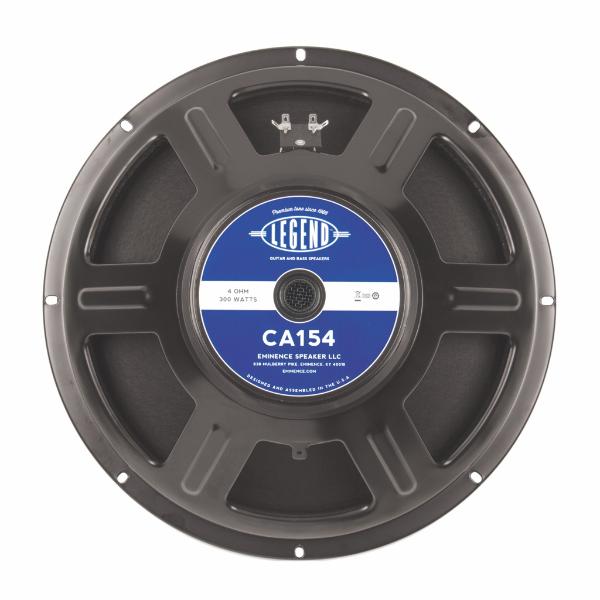

Eminence LEGEND CA154
Rating
DIAM
15"
FS(Hz)
51
VAS(l)
108.2
QTS
0.49
PWR(W)
600
SPL(dB)
96.1
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
51
Vas(l)
108.2
Qts
0.49
Qms
4.94
Qes
0.54
Bl(Tm)
12.2
Mms(gr)
86
Cms(mm/N)
0.113
Rms(kg/s)
5.579
Le(mH)
0.8
Re(Ohm)
2.9
Sd(sq.mm)
82370
Vd(l)
0.412
X-max(mm)
5
X-mech(mm)
8
General Parameters
Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.56
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
100.5
Mounting Information
Speaker Displacement (l)
3.62
Total Diameter (mm)
385
Cutout Diameter (mm)
352
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
