Model

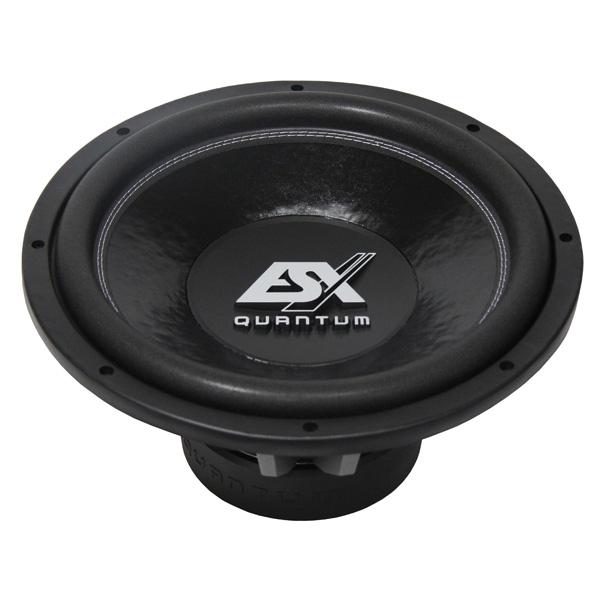

ESX QE1522
Rating
DIAM
15"
FS(Hz)
33
VAS(l)
109
QTS
0.44
PWR(W)
2000
SPL(dB)
90.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
109
Qts
0.44
Qms
5.01
Qes
0.482
Bl(Tm)
18.9
Mms(gr)
206
Cms(mm/N)
0.113
Rms(kg/s)
8.526
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
83000
Vd(l)
1.1
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
182
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
