Model

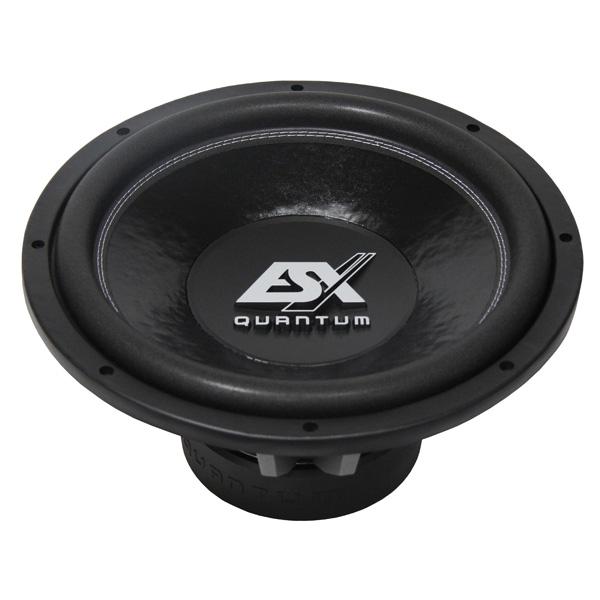

ESX QE1524
Rating
DIAM
15"
FS(Hz)
36
VAS(l)
101
QTS
0.49
PWR(W)
2000
SPL(dB)
91.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
101
Qts
0.49
Qms
3.86
Qes
0.561
Bl(Tm)
23.3
Mms(gr)
187
Cms(mm/N)
0.105
Rms(kg/s)
10.958
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
83000
Vd(l)
1.1
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
182
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
