Model

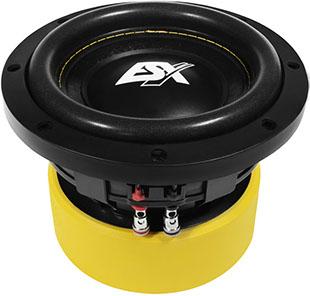

ESX QE622
Rating
DIAM
6"
FS(Hz)
50.4
VAS(l)
3.2
QTS
0.43
PWR(W)
500
SPL(dB)
81.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50.4
Vas(l)
3.2
Qts
0.43
Qms
5.2
Qes
0.47
Bl(Tm)
15.3
Mms(gr)
92
Cms(mm/N)
0.109
Rms(kg/s)
5.56
Le(mH)
1.93
Re(Ohm)
3.8
Sd(sq.mm)
14387
Vd(l)
0.216
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
81.2
Sensitivity(dB) 2.8-V
84.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
180
Cutout Diameter (mm)
150
Mounting Depth (mm)
130
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
