Model

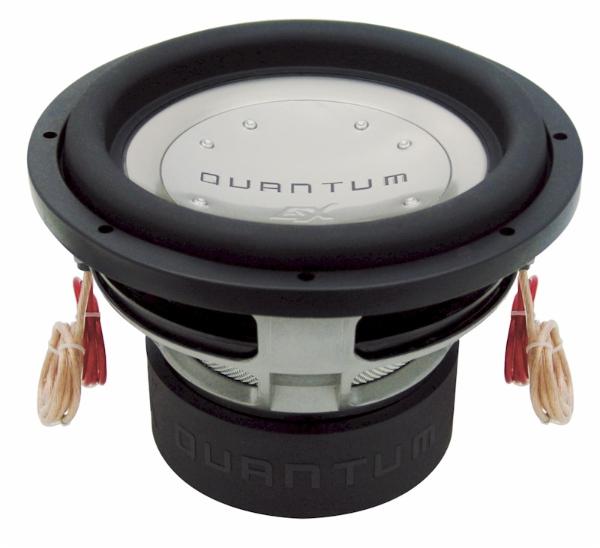

ESX QX-1222
Rating
DIAM
12"
FS(Hz)
31
VAS(l)
31
QTS
0.48
PWR(W)
5000
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
31
Qts
0.48
Qms
9
Qes
0.507
Bl(Tm)
10.1
Mms(gr)
295
Cms(mm/N)
0.089
Rms(kg/s)
6.384
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
49557
Vd(l)
1.239
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
208
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
