Model

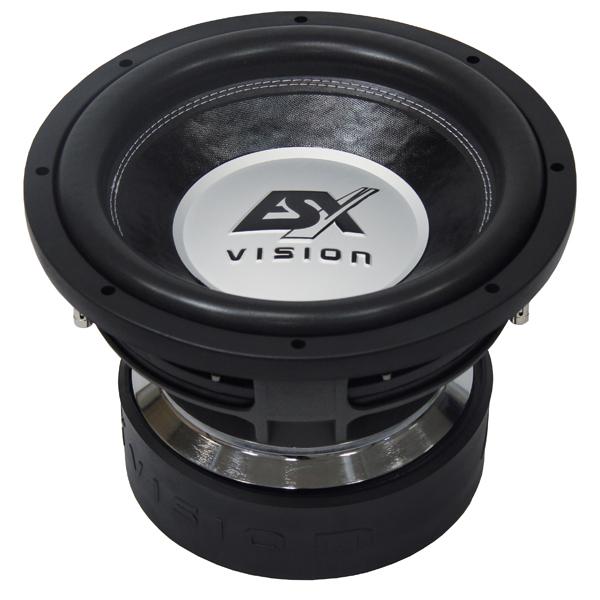

ESX VE1222
Rating
DIAM
12"
FS(Hz)
36
VAS(l)
29
QTS
0.32
PWR(W)
6000
SPL(dB)
87.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
29
Qts
0.32
Qms
5.22
Qes
0.341
Bl(Tm)
25.5
Mms(gr)
245
Cms(mm/N)
0.08
Rms(kg/s)
10.616
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
51000
Vd(l)
0.893
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
224
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
