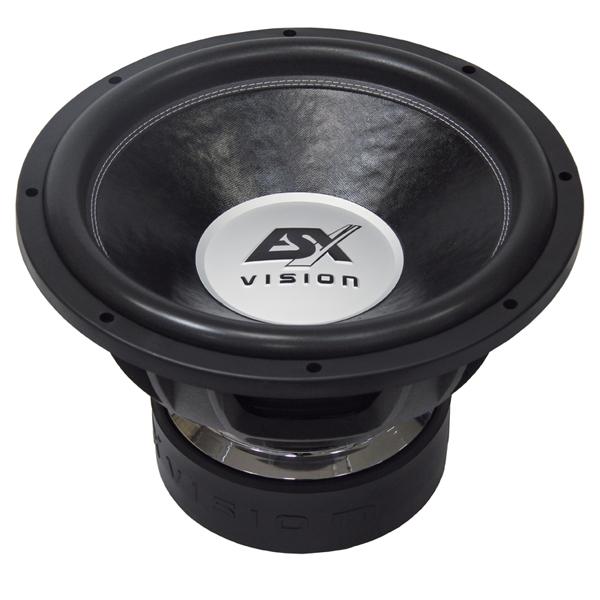

ESX VE1522
ESX VE1522
Model

ESX VE1522

Rating
DIAM
15"
FS(Hz)
35
VAS(l)
64
QTS
0.4
PWR(W)
8000
SPL(dB)
89.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
64
Qts
0.4
Qms
5.25
Qes
0.433
Bl(Tm)
25.7
Mms(gr)
322
Cms(mm/N)
0.064
Rms(kg/s)
13.488
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
84400
Vd(l)
1.477
X-max(mm)
18
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
8000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
358
Mounting Depth (mm)
260
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
