Model

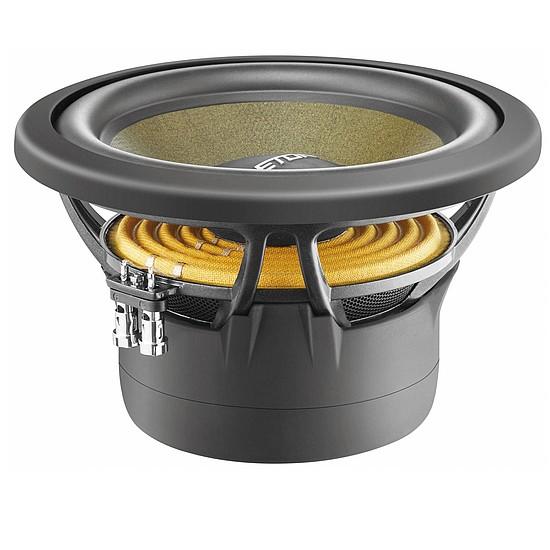

Eton 10-630 HEX
Rating
DIAM
10"
FS(Hz)
28.5
VAS(l)
35.6
QTS
0.3
PWR(W)
1000
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28.5
Vas(l)
35.6
Qts
0.298
Qms
7.8
Qes
0.31
Bl(Tm)
19.5
Mms(gr)
148
Cms(mm/N)
0.211
Rms(kg/s)
3.41
Le(mH)
0.88
Re(Ohm)
4.1
Sd(sq.mm)
34501
Vd(l)
0.345
X-max(mm)
10
X-mech(mm)
12
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
3
Total Diameter (mm)
268
Cutout Diameter (mm)
234
Mounting Depth (mm)
146
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
