Model

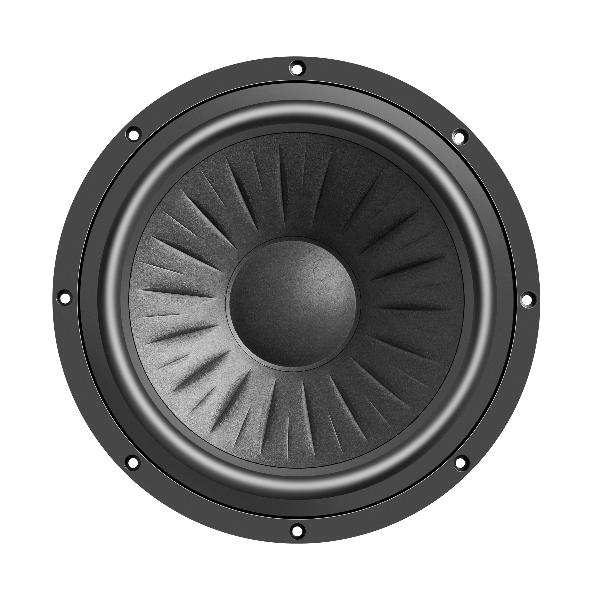

Eton 12-612/C8/62 RP
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
134
QTS
0.32
PWR(W)
300
SPL(dB)
92.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
134
Qts
0.32
Qms
5.16
Qes
0.34
Bl(Tm)
15.7
Mms(gr)
78
Cms(mm/N)
0.36
Rms(kg/s)
2.85
Le(mH)
1.6
Re(Ohm)
6.2
Sd(sq.mm)
51500
Vd(l)
0.438
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
12
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1
Sensitivity(dB) 1-W
92.1
Sensitivity(dB) 2.8-V
93.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
331
Cutout Diameter (mm)
282
Mounting Depth (mm)
142
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
