Model

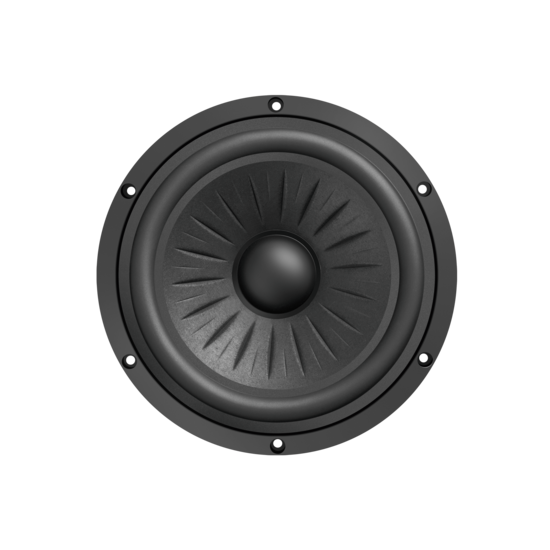

Eton 8-612/C8/32 RP
Rating
DIAM
8"
FS(Hz)
24
VAS(l)
100
QTS
0.3
PWR(W)
160
SPL(dB)
88.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
24
Vas(l)
100
Qts
0.3
Qms
6.7
Qes
0.32
Bl(Tm)
9.3
Mms(gr)
30
Cms(mm/N)
1.48
Rms(kg/s)
0.69
Le(mH)
0.99
Re(Ohm)
6.6
Sd(sq.mm)
22200
Vd(l)
0.1
X-max(mm)
5
X-mech(mm)
14
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.2
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
223
Cutout Diameter (mm)
190
Mounting Depth (mm)
108
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
