Model

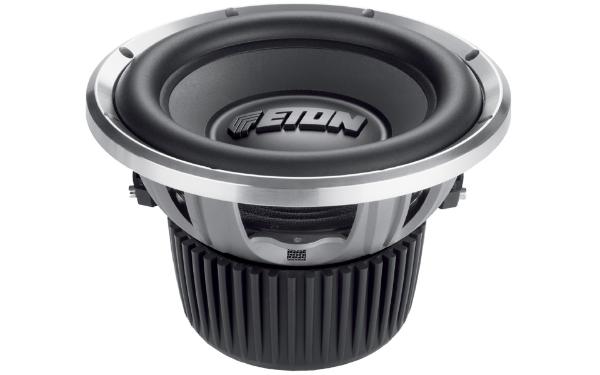

Eton EC 10-600
Rating
DIAM
10"
FS(Hz)
45
VAS(l)
13
QTS
0.48
PWR(W)
1200
SPL(dB)
84.9
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
13
Qts
0.48
Qms
2.67
Qes
0.58
Bl(Tm)
24.8
Mms(gr)
163
Cms(mm/N)
0.077
Rms(kg/s)
17.208
Le(mH)
0
Re(Ohm)
7.8
Sd(sq.mm)
34600
Vd(l)
0.484
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
224
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
