Model

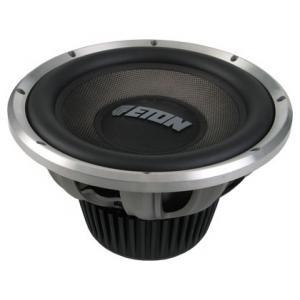

Eton EC 12-800
Rating
DIAM
12"
FS(Hz)
39
VAS(l)
33
QTS
0.51
PWR(W)
0
SPL(dB)
86.8
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
33
Qts
0.51
Qms
3.2
Qes
0.62
Bl(Tm)
8.7
Mms(gr)
198
Cms(mm/N)
0.083
Rms(kg/s)
15.25
Le(mH)
3.5
Re(Ohm)
7.2
Sd(sq.mm)
53000
Vd(l)
0.742
X-max(mm)
14
X-mech(mm)
22
General Parameters
Diameter (inch)
12
Max Power(W.)
0
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
87.3
Mounting Information
Speaker Displacement (l)
8
Total Diameter (mm)
319
Cutout Diameter (mm)
282
Mounting Depth (mm)
181
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
