Model

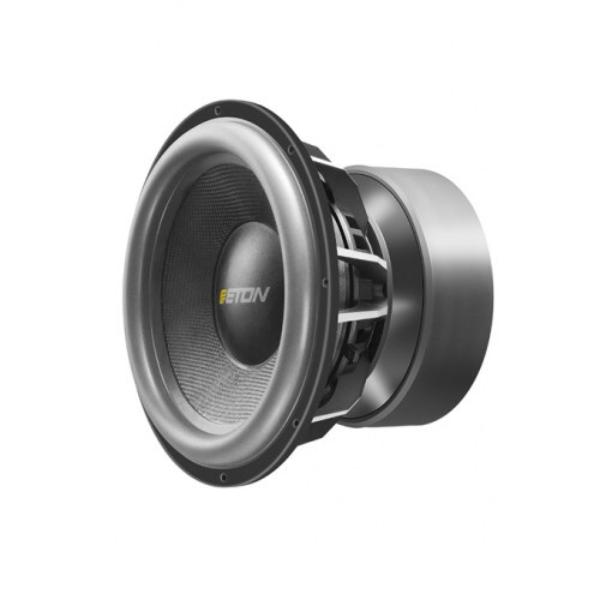

Eton FORCE F12
Rating
DIAM
12"
FS(Hz)
37.5
VAS(l)
27.9
QTS
0.38
PWR(W)
3000
SPL(dB)
87.3
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.5
Vas(l)
27.9
Qts
0.379
Qms
4.7
Qes
0.416
Bl(Tm)
14.3
Mms(gr)
257
Cms(mm/N)
0.07
Rms(kg/s)
12.9
Le(mH)
2.52
Re(Ohm)
1.4
Sd(sq.mm)
53100
Vd(l)
0.743
X-max(mm)
14
X-mech(mm)
28
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
94.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
208
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6P
