Model

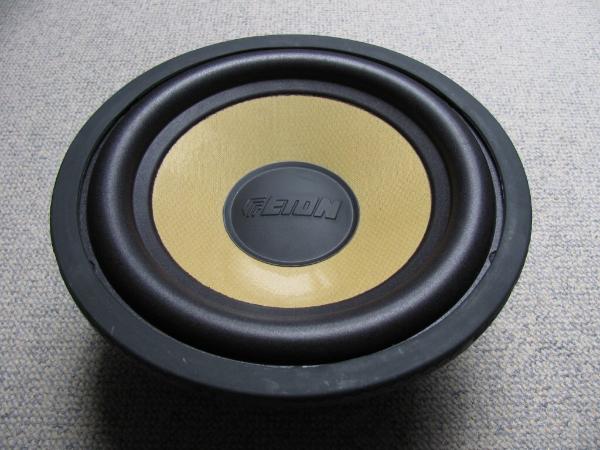

Eton HEX 10-620
Rating
DIAM
10"
FS(Hz)
20
VAS(l)
55
QTS
0.28
PWR(W)
900
SPL(dB)
84
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
20
Vas(l)
55
Qts
0.28
Qms
6
Qes
0.29
Bl(Tm)
15.5
Mms(gr)
180
Cms(mm/N)
0.352
Rms(kg/s)
3.9
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
33700
Vd(l)
0.067
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
87.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
266
Cutout Diameter (mm)
234
Mounting Depth (mm)
135
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
