Model

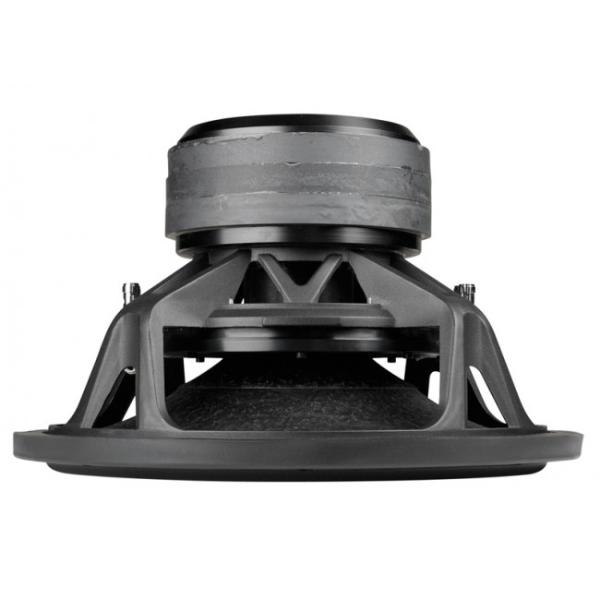

Eton MOVE M15
Rating
DIAM
15"
FS(Hz)
33.5
VAS(l)
58
QTS
0.4
PWR(W)
2000
SPL(dB)
88.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.5
Vas(l)
58
Qts
0.4
Qms
4.17
Qes
0.45
Bl(Tm)
24.6
Mms(gr)
376
Cms(mm/N)
0.06
Rms(kg/s)
18.6
Le(mH)
6.9
Re(Ohm)
3.4
Sd(sq.mm)
81433
Vd(l)
1.221
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
92.4
Mounting Information
Speaker Displacement (l)
7.8
Total Diameter (mm)
395
Cutout Diameter (mm)
350
Mounting Depth (mm)
215
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
