Model

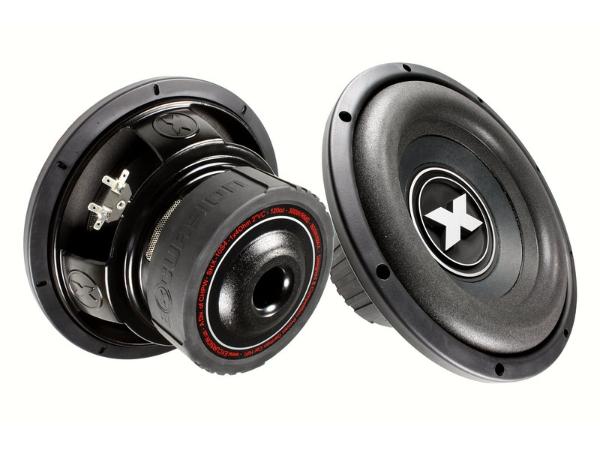

Excursion SHX-10S4
Rating
DIAM
10"
FS(Hz)
34.4
VAS(l)
28.6
QTS
0.44
PWR(W)
600
SPL(dB)
85.7
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
28.6
Qts
0.44
Qms
5.774
Qes
0.476
Bl(Tm)
12.3
Mms(gr)
105
Cms(mm/N)
0.205
Rms(kg/s)
3.914
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
31416
Vd(l)
0.298
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
126
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
