Model

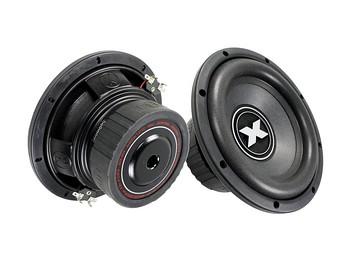

Excursion SHX-8D4
Rating
DIAM
8"
FS(Hz)
45
VAS(l)
18.1
QTS
0.47
PWR(W)
600
SPL(dB)
86.8
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
18.1
Qts
0.467
Qms
3.8
Qes
0.531
Bl(Tm)
6.1
Mms(gr)
42
Cms(mm/N)
0.301
Rms(kg/s)
3.1
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
20610
Vd(l)
0.144
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
93.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
