Model

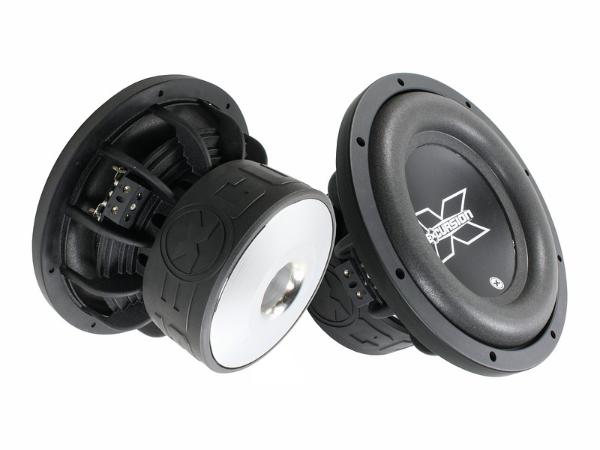

Excursion SXE-10D4
Rating
DIAM
10"
FS(Hz)
33.4
VAS(l)
22.8
QTS
0.43
PWR(W)
2000
SPL(dB)
84.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.4
Vas(l)
22.8
Qts
0.433
Qms
5.006
Qes
0.474
Bl(Tm)
20.5
Mms(gr)
153
Cms(mm/N)
0.148
Rms(kg/s)
6.431
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
32958
Vd(l)
0.593
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
239
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
