Model

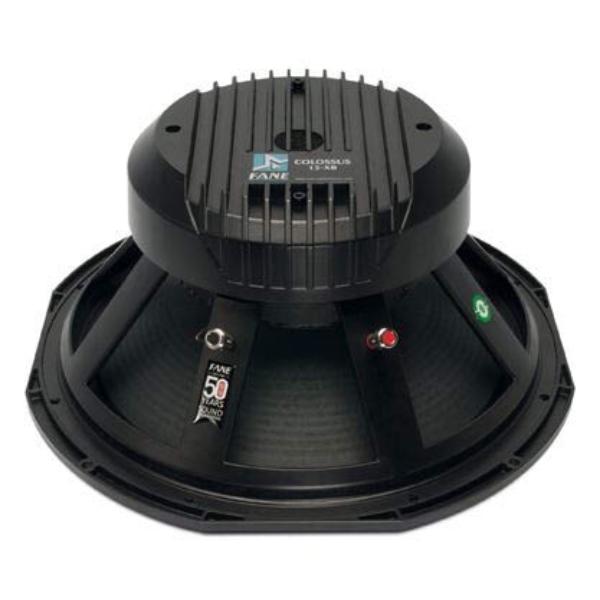

Fane COLOSSUS 15XB
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
168
QTS
0.32
PWR(W)
800
SPL(dB)
96.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
168
Qts
0.32
Qms
7.5
Qes
0.336
Bl(Tm)
22.1
Mms(gr)
108
Cms(mm/N)
0.162
Rms(kg/s)
3.44
Le(mH)
1.5
Re(Ohm)
6.4
Sd(sq.mm)
85500
Vd(l)
0.641
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.64
Sensitivity(dB) 1-W
96.2
Sensitivity(dB) 2.8-V
97.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
406
Cutout Diameter (mm)
352
Mounting Depth (mm)
181
Magnet Diameter (mm)
234
Optimum Enclosures
Enclosures
Vented, BP6
