Model

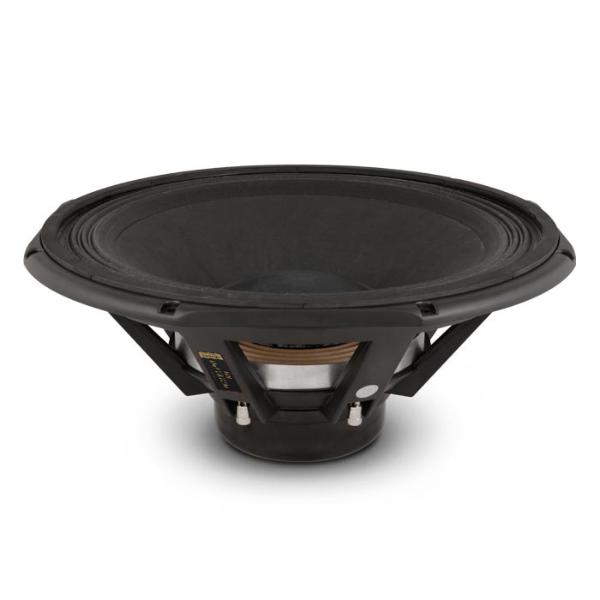

Fane IMPERIUM 18NDXL
Rating
DIAM
18"
FS(Hz)
33
VAS(l)
203
QTS
0.29
PWR(W)
4800
SPL(dB)
95.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
203
Qts
0.295
Qms
17.7
Qes
0.3
Bl(Tm)
29.4
Mms(gr)
220
Cms(mm/N)
0.106
Rms(kg/s)
2.58
Le(mH)
2.76
Re(Ohm)
5.6
Sd(sq.mm)
116400
Vd(l)
1.397
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
4800
RMS Power(W.)
1200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.34
Sensitivity(dB) 1-W
95.7
Sensitivity(dB) 2.8-V
97.2
Mounting Information
Speaker Displacement (l)
1.35
Total Diameter (mm)
485
Cutout Diameter (mm)
420
Mounting Depth (mm)
204
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
