Model

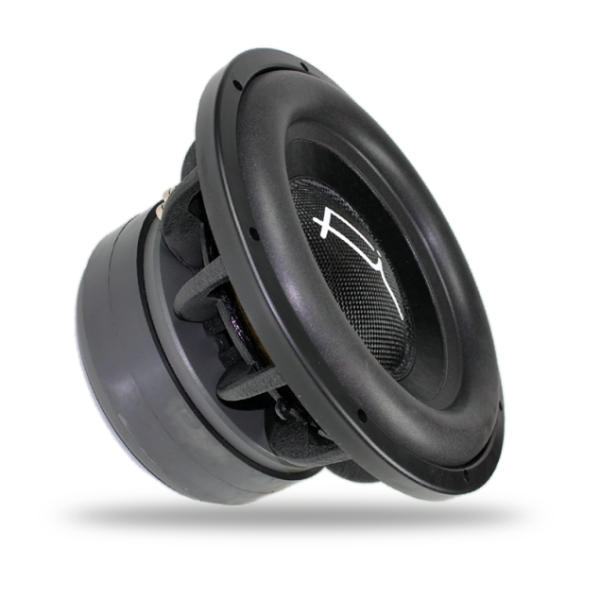

Fi Car Audio BL 10 V3 D2
Rating
DIAM
10"
FS(Hz)
38
VAS(l)
11.5
QTS
0.27
PWR(W)
3500
SPL(dB)
85.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
11.5
Qts
0.27
Qms
6.22
Qes
0.29
Bl(Tm)
21.9
Mms(gr)
206
Cms(mm/N)
0.085
Rms(kg/s)
7.908
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
30886
Vd(l)
0.618
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
159
Magnet Diameter (mm)
9
Optimum Enclosures
Enclosures
Vented, BP6
