Model

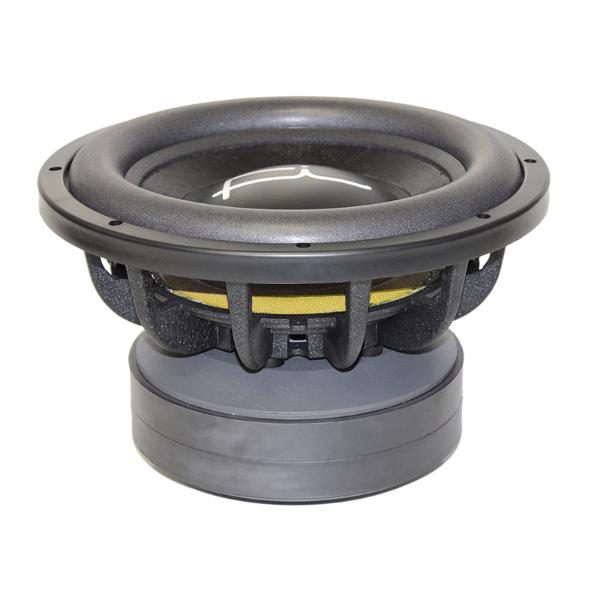

Fi Car Audio BL 12 D1
Rating
DIAM
12"
FS(Hz)
35.2
VAS(l)
31.2
QTS
0.24
PWR(W)
3000
SPL(dB)
89.2
IMP(Ohm)
1x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.2
Vas(l)
31.2
Qts
0.24
Qms
4.7
Qes
0.25
Bl(Tm)
16.6
Mms(gr)
212
Cms(mm/N)
0.96
Rms(kg/s)
9.98
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
48000
Vd(l)
0.864
X-max(mm)
18
X-mech(mm)
36
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.52
Sensitivity(dB) 1-W
89.2
Sensitivity(dB) 2.8-V
96.8
Mounting Information
Speaker Displacement (l)
5.1
Total Diameter (mm)
318
Cutout Diameter (mm)
283
Mounting Depth (mm)
171
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
