Model

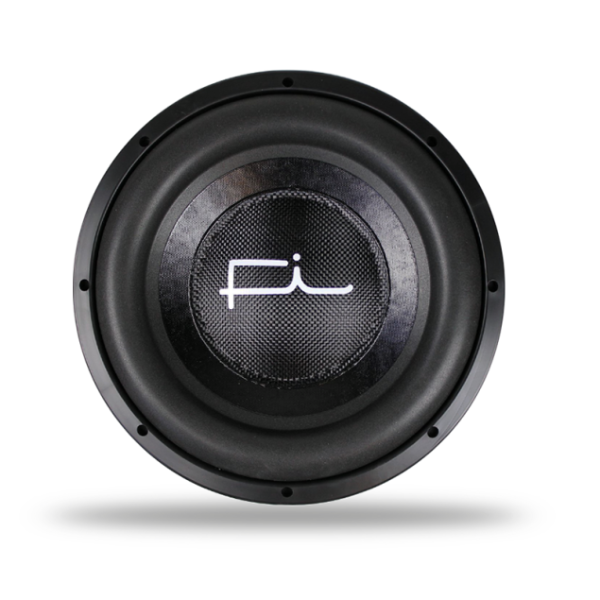

Fi Car Audio BL 12 V3 D2
Rating
DIAM
12"
FS(Hz)
36.6
VAS(l)
27
QTS
0.3
PWR(W)
3500
SPL(dB)
87.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.6
Vas(l)
27
Qts
0.3
Qms
7.46
Qes
0.33
Bl(Tm)
21.9
Mms(gr)
225
Cms(mm/N)
0.084
Rms(kg/s)
6.936
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
48000
Vd(l)
0.96
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
87.9
Sensitivity(dB) 2.8-V
95.5
Mounting Information
Speaker Displacement (l)
5.097
Total Diameter (mm)
318
Cutout Diameter (mm)
282
Mounting Depth (mm)
172
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
