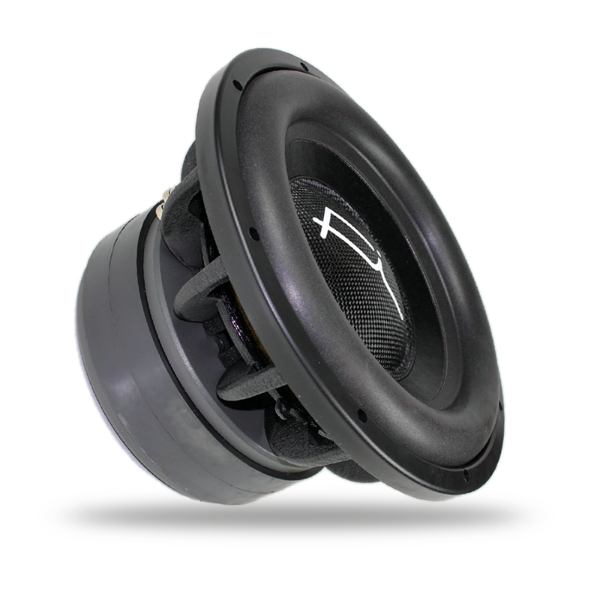

Fi Car Audio BL18V3 D1
Fi Car Audio BL18V3 D1
Model

Fi Car Audio BL18V3 D1

Rating
DIAM
18"
FS(Hz)
33.6
VAS(l)
136
QTS
0.4
PWR(W)
3500
SPL(dB)
92.7
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.6
Vas(l)
136
Qts
0.4
Qms
8.21
Qes
0.42
Bl(Tm)
15.5
Mms(gr)
338
Cms(mm/N)
0.066
Rms(kg/s)
8.691
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
120526
Vd(l)
2.411
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
7.36
Total Diameter (mm)
0
Cutout Diameter (mm)
425
Mounting Depth (mm)
248
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
