Model

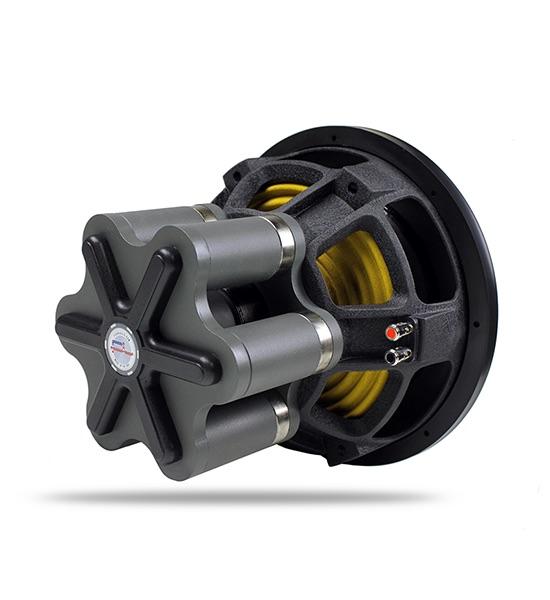

Fi Car Audio BTL V3 15 NEO D1
Rating
DIAM
15"
FS(Hz)
32.8
VAS(l)
66.1
QTS
0.29
PWR(W)
5000
SPL(dB)
90.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.8
Vas(l)
66.1
Qts
0.29
Qms
6.61
Qes
0.303
Bl(Tm)
20.3
Mms(gr)
326
Cms(mm/N)
0.072
Rms(kg/s)
10.164
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
80456
Vd(l)
2.736
X-max(mm)
34
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
5.946
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
286
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
