Model

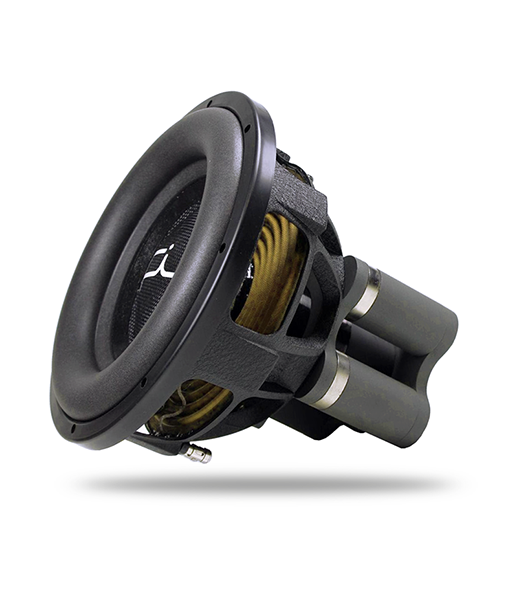

Fi Car Audio FI Q 12 NEO
Rating
DIAM
12"
FS(Hz)
33.3
VAS(l)
29.6
QTS
0.38
PWR(W)
3500
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.3
Vas(l)
29.6
Qts
0.38
Qms
7.75
Qes
0.399
Bl(Tm)
21.6
Mms(gr)
249
Cms(mm/N)
0.092
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
48000
Vd(l)
1.642
X-max(mm)
35
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.814
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
286
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
