Model

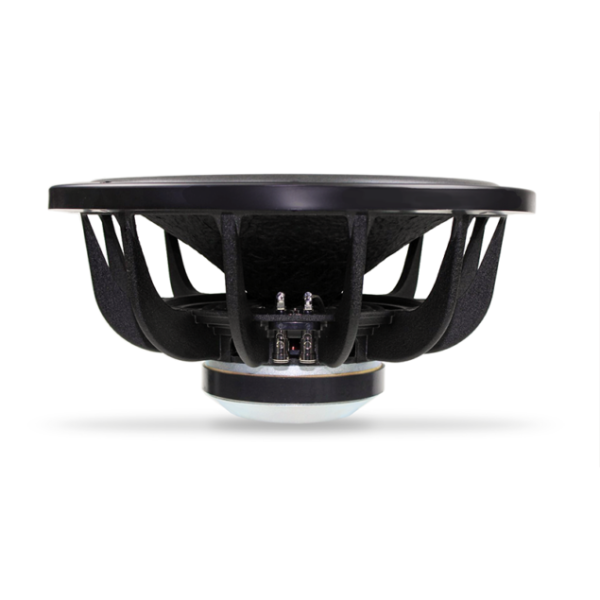

Fi Car Audio FIDAY 15
Rating
DIAM
15"
FS(Hz)
29.8
VAS(l)
167.5
QTS
0.38
PWR(W)
700
SPL(dB)
92.2
IMP(Ohm)
2x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.8
Vas(l)
167.5
Qts
0.38
Qms
5.42
Qes
0.41
Bl(Tm)
11.6
Mms(gr)
157
Cms(mm/N)
1.853
Rms(kg/s)
5.42
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
81000
Vd(l)
1.539
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
1.04
Sensitivity(dB) 1-W
92.2
Sensitivity(dB) 2.8-V
98.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
