Model

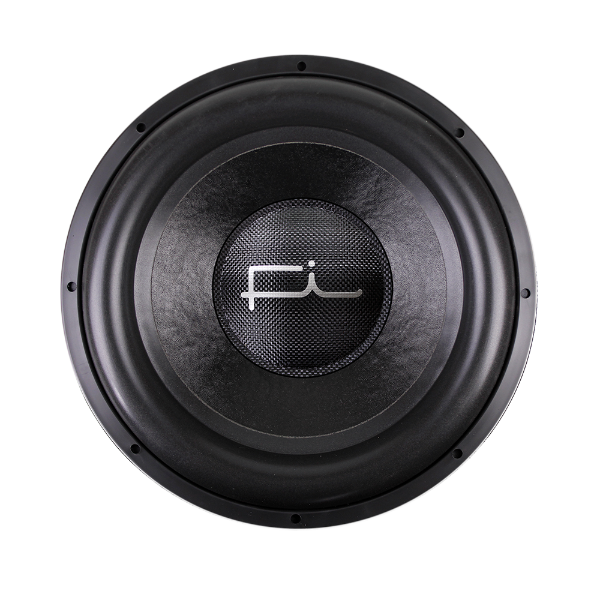

Fi Car Audio IB3 V2 15 S2
Rating
DIAM
15"
FS(Hz)
26.1
VAS(l)
114.5
QTS
0.76
PWR(W)
1200
SPL(dB)
85.7
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
26.1
Vas(l)
114.5
Qts
0.76
Qms
8.7
Qes
0.83
Bl(Tm)
10.6
Mms(gr)
298
Cms(mm/N)
0.127
Rms(kg/s)
5.6
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
81000
Vd(l)
2.754
X-max(mm)
34
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
92.2
Mounting Information
Speaker Displacement (l)
4.81
Total Diameter (mm)
397
Cutout Diameter (mm)
359
Mounting Depth (mm)
203
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
