Model

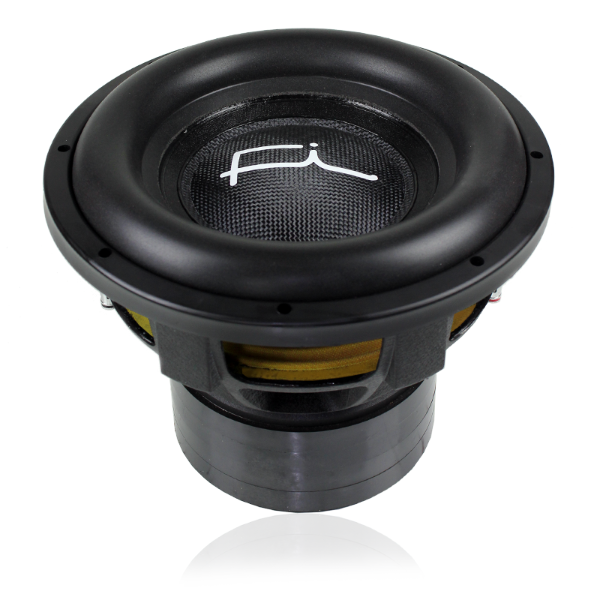

Fi Car Audio Q15 DUAL 2 FERRITE (2019)
Rating
DIAM
15"
FS(Hz)
30.6
VAS(l)
65
QTS
0.45
PWR(W)
0
SPL(dB)
0
IMP(Ohm)
0x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.6
Vas(l)
65
Qts
0.45
Qms
8.2
Qes
0.47
Bl(Tm)
21.4
Mms(gr)
319
Cms(mm/N)
0.83
Rms(kg/s)
1750
Le(mH)
1.4
Re(Ohm)
1.8
Sd(sq.mm)
81000
Vd(l)
0.7
X-max(mm)
34
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
0
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
0
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.829
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
