Model

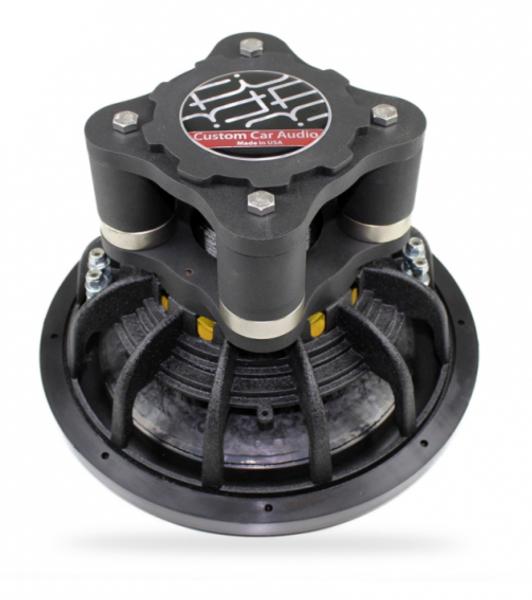

Fi Car Audio SSD 15 NEO D2
Rating
DIAM
15"
FS(Hz)
37.5
VAS(l)
63.3
QTS
0.49
PWR(W)
3500
SPL(dB)
89.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.5
Vas(l)
63.3
Qts
0.49
Qms
7.1
Qes
0.52
Bl(Tm)
18.3
Mms(gr)
261
Cms(mm/N)
0.069
Rms(kg/s)
8.66
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
81000
Vd(l)
2.268
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.62
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
97.5
Mounting Information
Speaker Displacement (l)
4.81
Total Diameter (mm)
397
Cutout Diameter (mm)
359
Mounting Depth (mm)
203
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
