Model

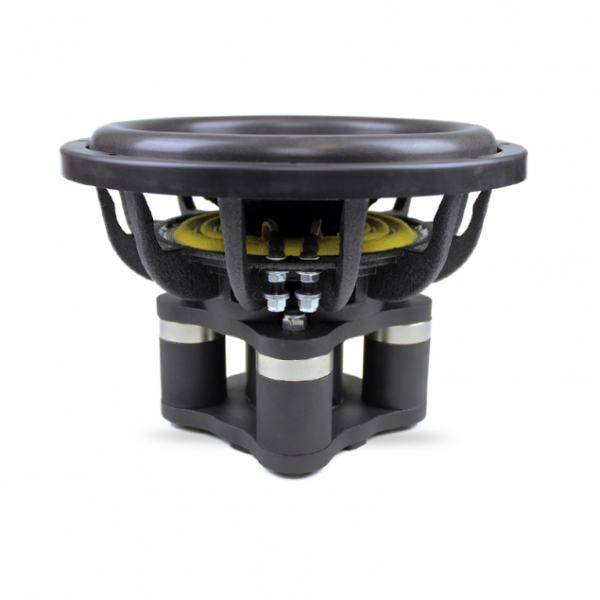

Fi Car Audio SSD 18 NEO D2
Rating
DIAM
18"
FS(Hz)
35.7
VAS(l)
131.01
QTS
0.53
PWR(W)
3500
SPL(dB)
92
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.7
Vas(l)
131
Qts
0.53
Qms
7.73
Qes
0.57
Bl(Tm)
18.3
Mms(gr)
302
Cms(mm/N)
0.066
Rms(kg/s)
8.763
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
118305
Vd(l)
3.313
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
6.23
Total Diameter (mm)
0
Cutout Diameter (mm)
426
Mounting Depth (mm)
241
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
