Model

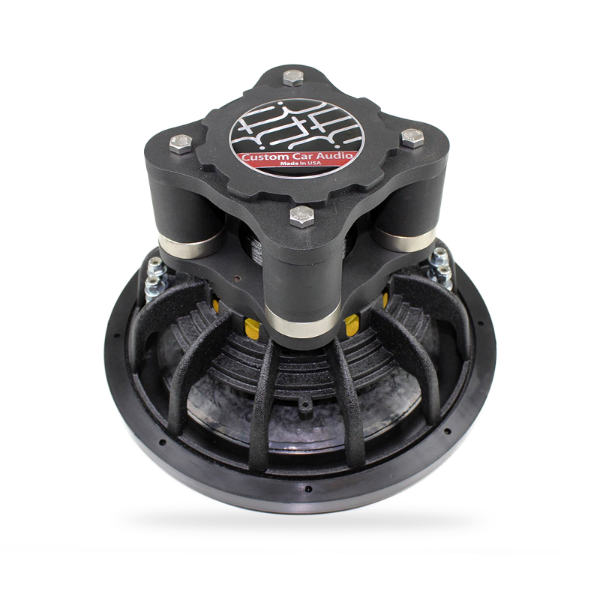

Fi Car Audio SSD NEO 10 D2
Rating
DIAM
10"
FS(Hz)
39
VAS(l)
10.3
QTS
0.41
PWR(W)
3000
SPL(dB)
83.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
10.3
Qts
0.41
Qms
6
Qes
0.44
Bl(Tm)
18.3
Mms(gr)
207
Cms(mm/N)
76
Rms(kg/s)
8.45
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
31000
Vd(l)
0.868
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
87.8
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
279
Cutout Diameter (mm)
235
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
