Model

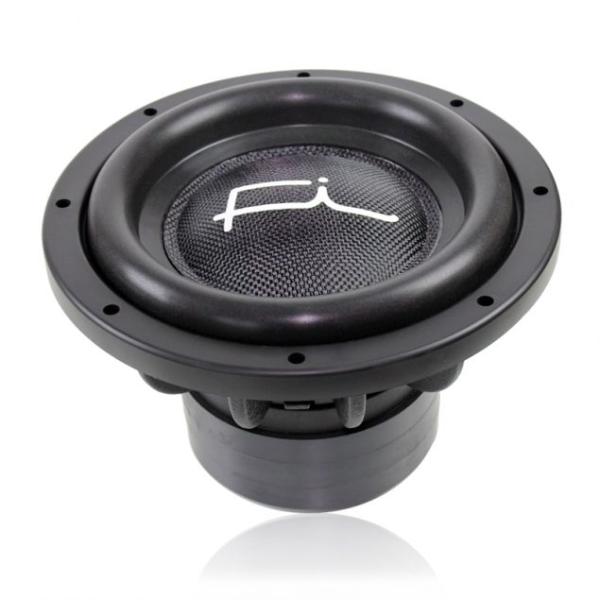

Fi Car Audio X15 V3 D2
Rating
DIAM
15"
FS(Hz)
34.7
VAS(l)
60.15
QTS
0.51
PWR(W)
1500
SPL(dB)
87.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.7
Vas(l)
60.1
Qts
0.51
Qms
8
Qes
0.66
Bl(Tm)
19.8
Mms(gr)
314
Cms(mm/N)
0.067
Rms(kg/s)
8.56
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
81000
Vd(l)
2.187
X-max(mm)
27
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
95.2
Mounting Information
Speaker Displacement (l)
2.55
Total Diameter (mm)
397
Cutout Diameter (mm)
359
Mounting Depth (mm)
222
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
