Model

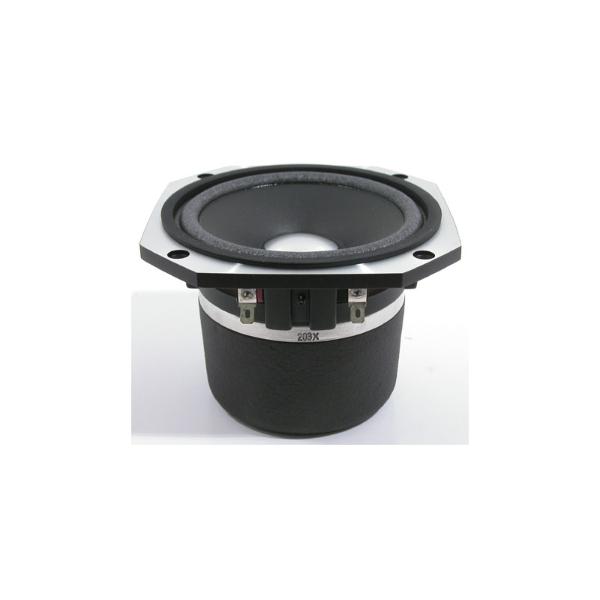

Fostex F120A
Rating
DIAM
5"
FS(Hz)
65
VAS(l)
9.9
QTS
0.44
PWR(W)
60
SPL(dB)
89.1
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
9.9
Qts
0.44
Qms
3.1
Qes
0.51
Bl(Tm)
5.1
Mms(gr)
5
Cms(mm/N)
1.276
Rms(kg/s)
0.62
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
7389
Vd(l)
0.011
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.51
Sensitivity(dB) 1-W
89.1
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
123
Cutout Diameter (mm)
103
Mounting Depth (mm)
89
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
