Model

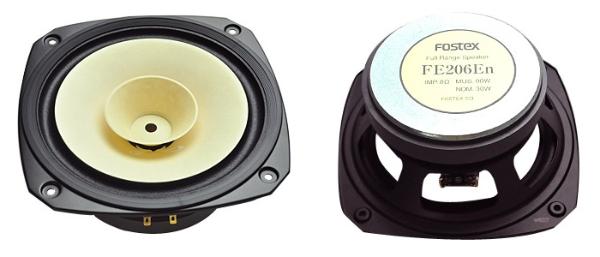

Fostex FE206EN
Rating
DIAM
8"
FS(Hz)
45
VAS(l)
71
QTS
0.19
PWR(W)
90
SPL(dB)
97
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
71
Qts
0.19
Qms
4.57
Qes
0.198
Bl(Tm)
10.7
Mms(gr)
12
Cms(mm/N)
1.025
Rms(kg/s)
0.755
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
20600
Vd(l)
0.016
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
90
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
182
Mounting Depth (mm)
84
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Vented, BP6
