Model

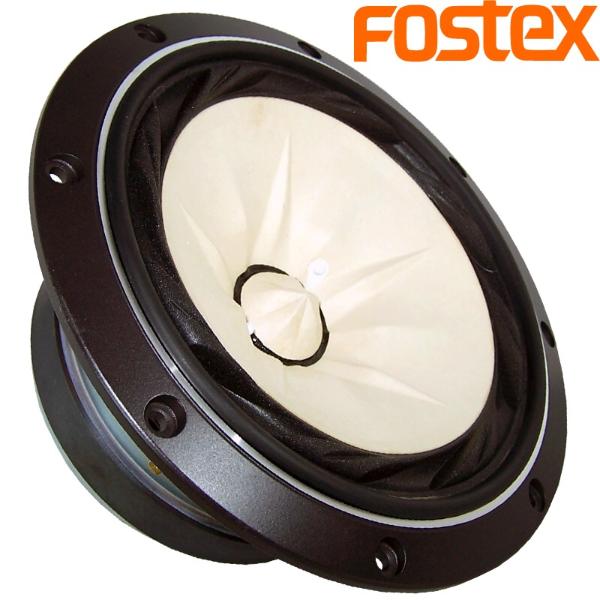

Fostex FE208EZ
Rating
DIAM
8"
FS(Hz)
42
VAS(l)
60.1
QTS
0.18
PWR(W)
120
SPL(dB)
95.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
60.1
Qts
0.18
Qms
6.2
Qes
0.19
Bl(Tm)
10.8
Mms(gr)
13
Cms(mm/N)
1.08
Rms(kg/s)
0.57
Le(mH)
0.05
Re(Ohm)
6.4
Sd(sq.mm)
20100
Vd(l)
0.025
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
120
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.26
Sensitivity(dB) 1-W
95.5
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
230
Cutout Diameter (mm)
182
Mounting Depth (mm)
94
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Vented, BP6
