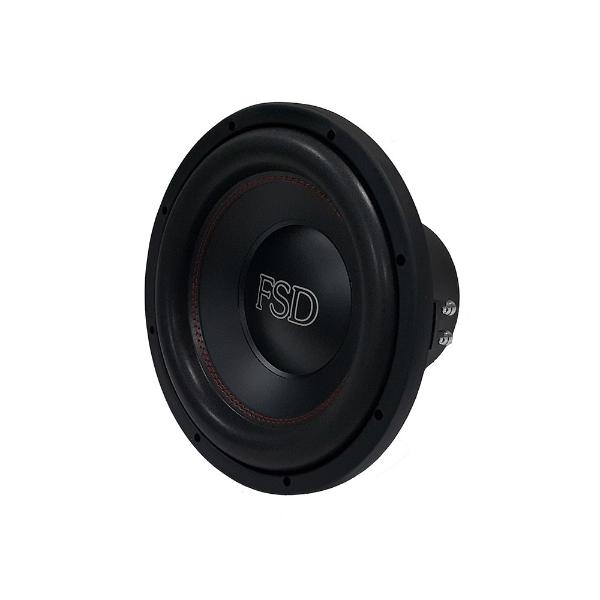

FSD audio SW-M1222
FSD audio SW-M1222
Model

FSD audio SW-M1222

Rating
DIAM
12"
FS(Hz)
25
VAS(l)
63.9
QTS
0.38
PWR(W)
1500
SPL(dB)
85.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
25
Vas(l)
63.9
Qts
0.38
Qms
5.71
Qes
0.4
Bl(Tm)
16.4
Mms(gr)
193
Cms(mm/N)
0.21
Rms(kg/s)
5.309
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
46319
Vd(l)
1.112
X-max(mm)
24
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
89.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
178
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
