Model

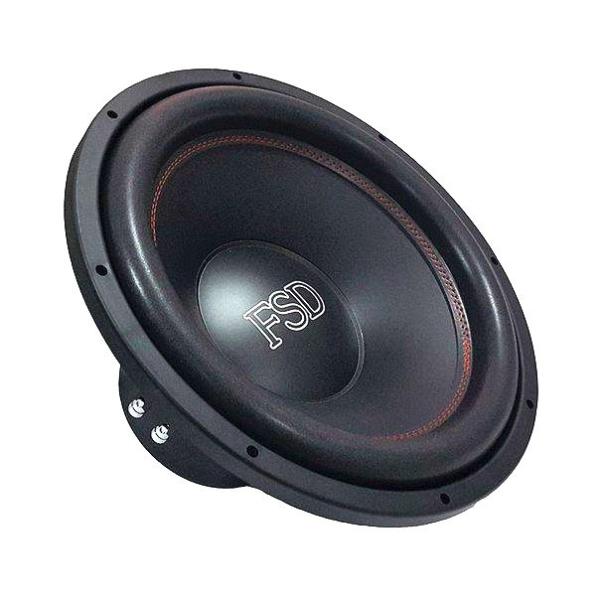

FSD audio SW-M1522
Rating
DIAM
15"
FS(Hz)
25
VAS(l)
142.4
QTS
0.51
PWR(W)
150
SPL(dB)
87.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
142.4
Qts
0.51
Qms
6.7
Qes
0.55
Bl(Tm)
15.9
Mms(gr)
253
Cms(mm/N)
0.16
Rms(kg/s)
5.94
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
79217
Vd(l)
1.901
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
150
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
87.9
Sensitivity(dB) 2.8-V
91.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
380
Cutout Diameter (mm)
356
Mounting Depth (mm)
198
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
