Model

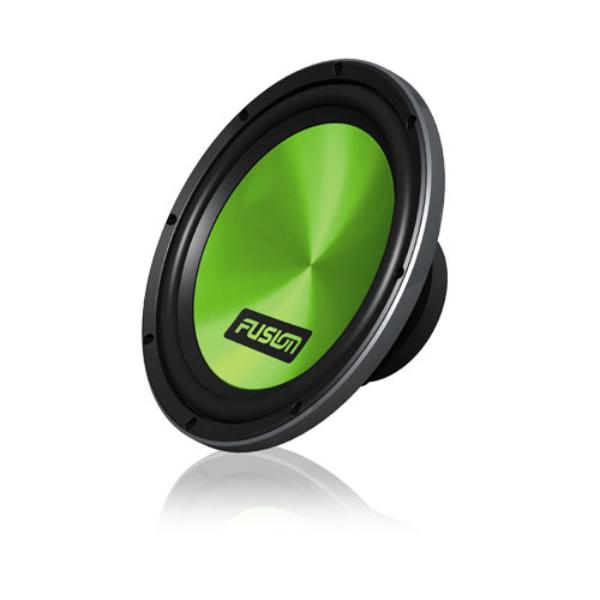

Fusion EN-SW101
Rating
DIAM
10"
FS(Hz)
36.6
VAS(l)
33.7
QTS
0.81
PWR(W)
800
SPL(dB)
88
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
36.6
Vas(l)
33.7
Qts
0.81
Qms
9.23
Qes
0.89
Bl(Tm)
9.7
Mms(gr)
101
Cms(mm/N)
0.187
Rms(kg/s)
2.51
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
35000
Vd(l)
0.21
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
126
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
