Model

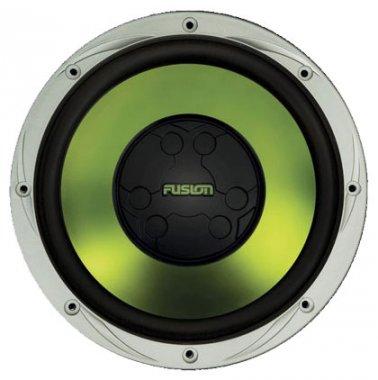

Fusion EN-SW10HD
Rating
DIAM
10"
FS(Hz)
29.8
VAS(l)
59
QTS
0.37
PWR(W)
400
SPL(dB)
88
IMP(Ohm)
4x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
29.8
Vas(l)
59
Qts
0.37
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
250
Cutout Diameter (mm)
0
Mounting Depth (mm)
123
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
