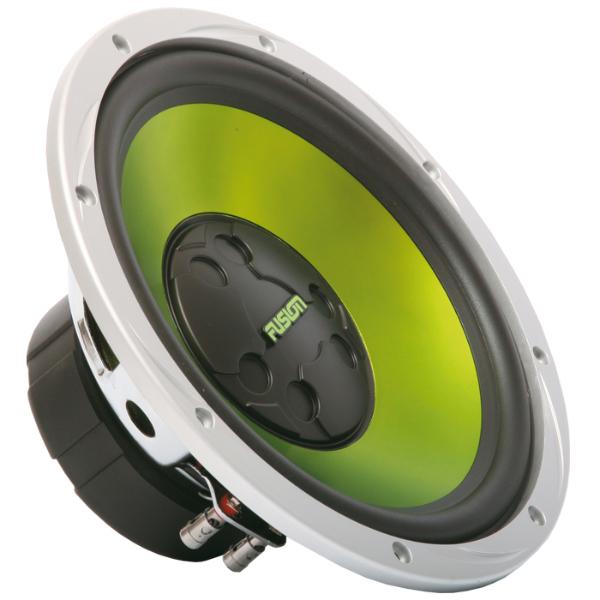

Fusion EN-SW120
Fusion EN-SW120
Model

Fusion EN-SW120

Rating
DIAM
12"
FS(Hz)
24.1
VAS(l)
128.6
QTS
0.28
PWR(W)
400
SPL(dB)
89
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24.1
Vas(l)
128.6
Qts
0.275
Qms
2.78
Qes
0.31
Bl(Tm)
15.6
Mms(gr)
135
Cms(mm/N)
0.321
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
53100
Vd(l)
0.32
X-max(mm)
6
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
275
Mounting Depth (mm)
136
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
