Model

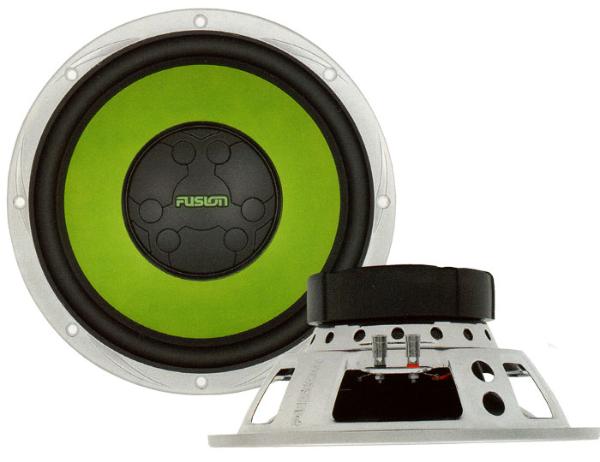

Fusion EN-SW12ES
Rating
DIAM
12"
FS(Hz)
24.1
VAS(l)
128.6
QTS
0.28
PWR(W)
400
SPL(dB)
89.6
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
24.1
Vas(l)
128.6
Qts
0.275
Qms
2.78
Qes
0.305
Bl(Tm)
15.6
Mms(gr)
135
Cms(mm/N)
0.321
Rms(kg/s)
7.383
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
53148
Vd(l)
0.319
X-max(mm)
6
X-mech(mm)
23
General Parameters
Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.57
Sensitivity(dB) 1-W
89.6
Sensitivity(dB) 2.8-V
93.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
276
Mounting Depth (mm)
136
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
